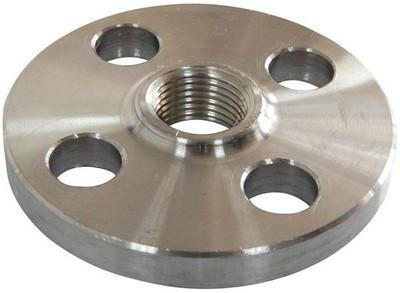

DIN STANDARD FORGED STAINLESS FLANGES
Information
| Product Name | Various Flanges | |
| Items | Plate, Welding Neck, Slip on, Blind, Socket Welding, Lap joint, Threaded Flange etc. | |
| Standard | ANSI | ANSI B16.5, ASME B16.47 series A/B |
| DIN | Germany 6bar, 10bar, 16bar, 25bar, 40bar | |
| GOST | GOST 12820/12821/12836 | |
| EN1092-1 | EN1092-01/05/11/12/13 | |
| JIS | JIS B 2220-1984, KS B1503, JIS B 2216 | |
| BS4504 | BS4504 BS10 Table D/E | |
| Material | ANSI | CS A105, S235, Steel 20; SS 304/304L, 316/316L |
| DIN | CS RST37.2, S235JRG, P245GH, P250GH; SS 304/304L, 316/316L | |
| GOST | CS Steel 20, 16MN, Q235 | |
| EN1092-1 | CS RST37.2, S235JRG, C22.8 | |
| JIS | SS400, SS 304/304L, 316/316L | |
| BS4504 | CS RST37.2, S235JRG, C22.8; SS 304/304L, 316/316L | |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500, 2500lbs |
| DIN | PN6, PN10, PN16, PN25, PN40 | |
| GOST | PN6, PN10, PN16, PN25, PN40, PN63, PN100 | |
| EN1092-1 | PN6, PN10, PN16, PN25, PN40, PN63, PN100 | |
| JIS | 5K, 10K, 16K, 20K, 30K, 40K | |
| BS4504 | PN6, PN10, PN16, PN25, PN40 | |
| Size | ANSI | 1/2" - 80" |
| DIN | DN15-DN2000 | |
| GOST | DN15-DN1600 | |
| EN1092-1 | DN15-DN2000 | |
| JIS | 15A-1500A | |
| BS4504 | DN15-DN2000 | |
